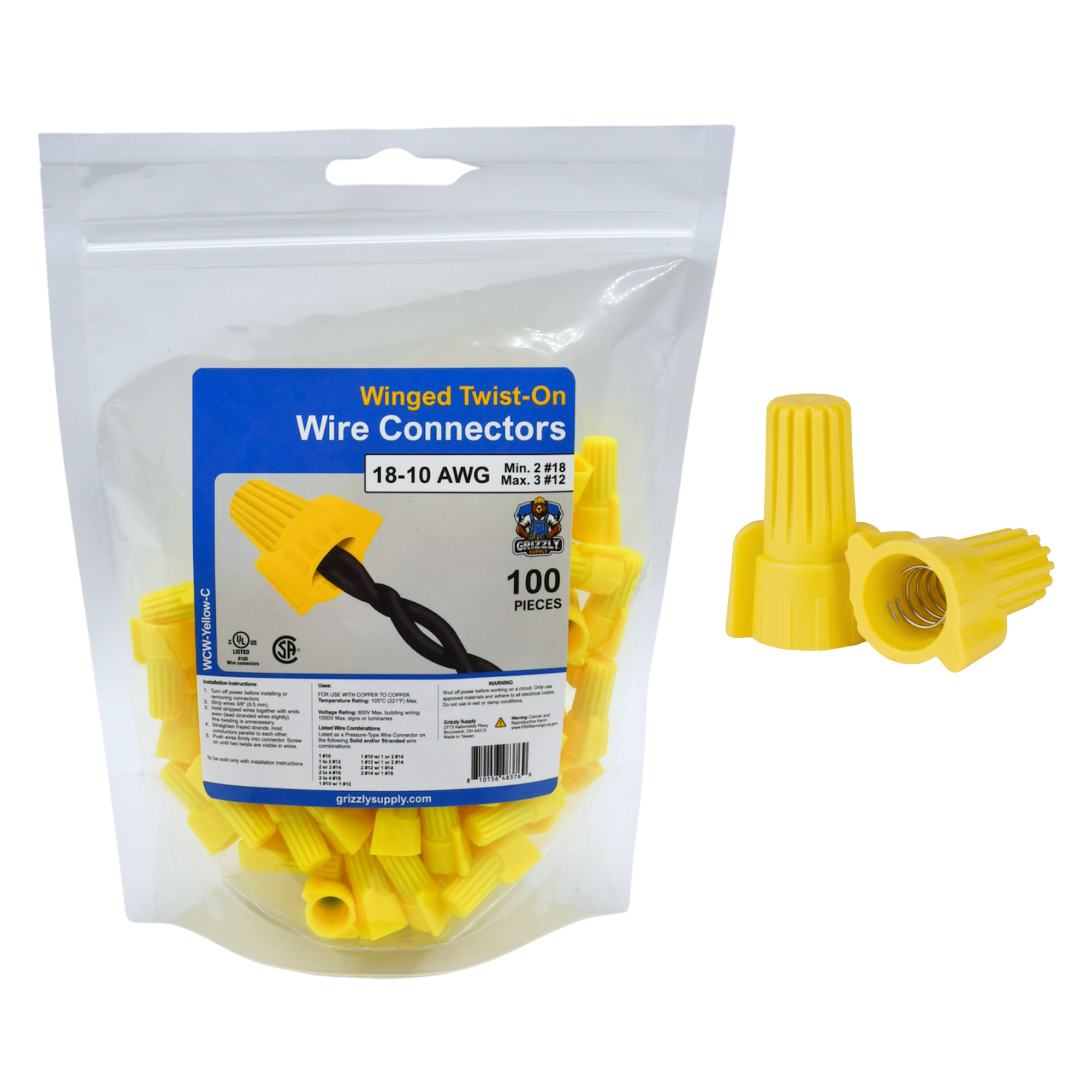

Winged Yellow Screw-On Wire Connectors 18-10 AWG 100/Bag #WCW-Yellow-C

Winged Yellow Screw-On Wire Connectors 18-10 100/Bag

Qty. 100

Twist-On

22-8 AWG

Min. 2 #18

Max. 3 #12

UL Recognized (US): Yes

CSA: Yes

WARNING: Shut off power before working on a circuit. Only use approved materials and adhere to all electrical codes

Do not use in wet or damp conditions.

FOR USE WITH COPPER TO COPPER
Temperature Rating: 105°C (221°F) Max.
Voltage Rating: 300V Max

Installation Instructions:
1. Turn off power before installing or removing connectors.
2. Strip wires 3/8" (9.5 mm).
3. Hold stripped wires together with ends even (lead stranded wires slightly). Pre-twisting is unnecessary.
4. Straighten frayed strands. Hold conductors parallel to each other.
5. Push wires firmly into connector. Screw on until two twists are visible in wires.
To be sold only with installation instructions

Shortened List of Wire Combinations:

1 #10
1to 3 #12
2 or 3 #14
2 to 4 #16
2to 4 #18
1 #10 w/1 #12
1 #10 w/1 or 2 #14
1 #12 w/1 or 2 #14
2 #12 w/1 #14
3 #14 /1 #16
