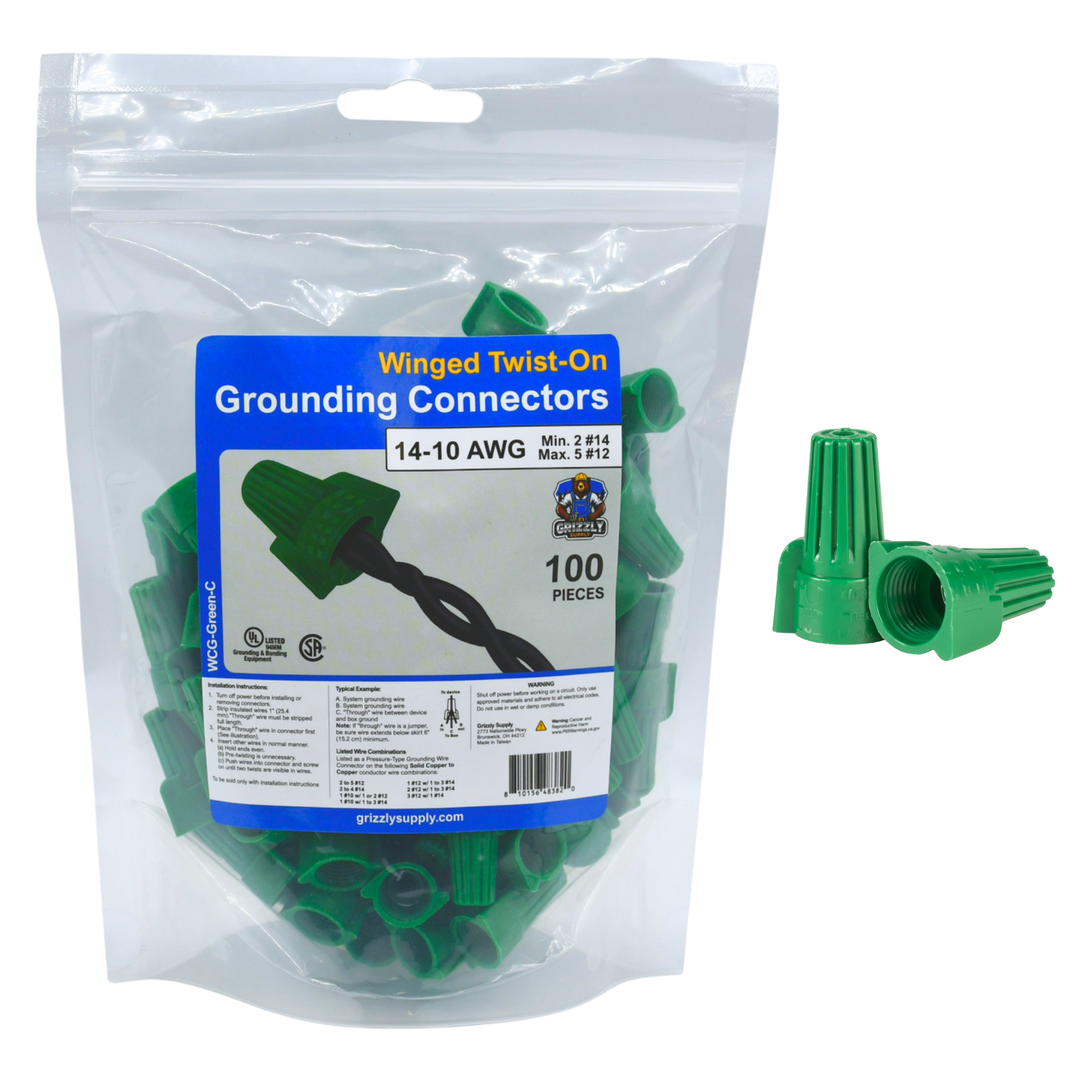

Winged Green Screw-On Grounding Connectors 14-10 AWG 100/Bag #WCG-Green-C

Winged Green Screw-On Grounding Connectors 14-10 100/Bag

Qty. 100

Twist-On

14-10 AWG

Min. 2 #14, Sol

Max. 5#12, Sol

UL Recognized (US): Yes

CSA: Yes

WARNING: Shut off power before working on a circuit. Only use approved materials and adhere to all electrical codes

Do not use in wet or damp conditions.

FOR USE WITH COPPER TO COPPER
Temperature Rating: 105°C (221°F) Max.
Voltage Rating: 300V Max

Installation Instructions:
1. Turn off power before installing or removing connectors.
2. Strip insulated wires 1" (25.4 mm)."Through" wire must be stripped full length.
3. Place "Through" wire in connector first (See illustration).
4. Insert other wires in normal manner.
   (a) Hold ends even.
   (b) Pre-twisting is unnecessary.
   (c) Push wires into connector and screw on until two twists are visible in wires.
To be sold only with installation instructions

Shortened List of Wire Combinations:

2 to 5 #12
2 to 4 #14
1 #10 w/1 or 2 #12
1 #10 w/1 to 3 #14
1 #12 w/1 to 3 #14
2 #12 w/1 to 3 #14
3 #12 w/1 #14
