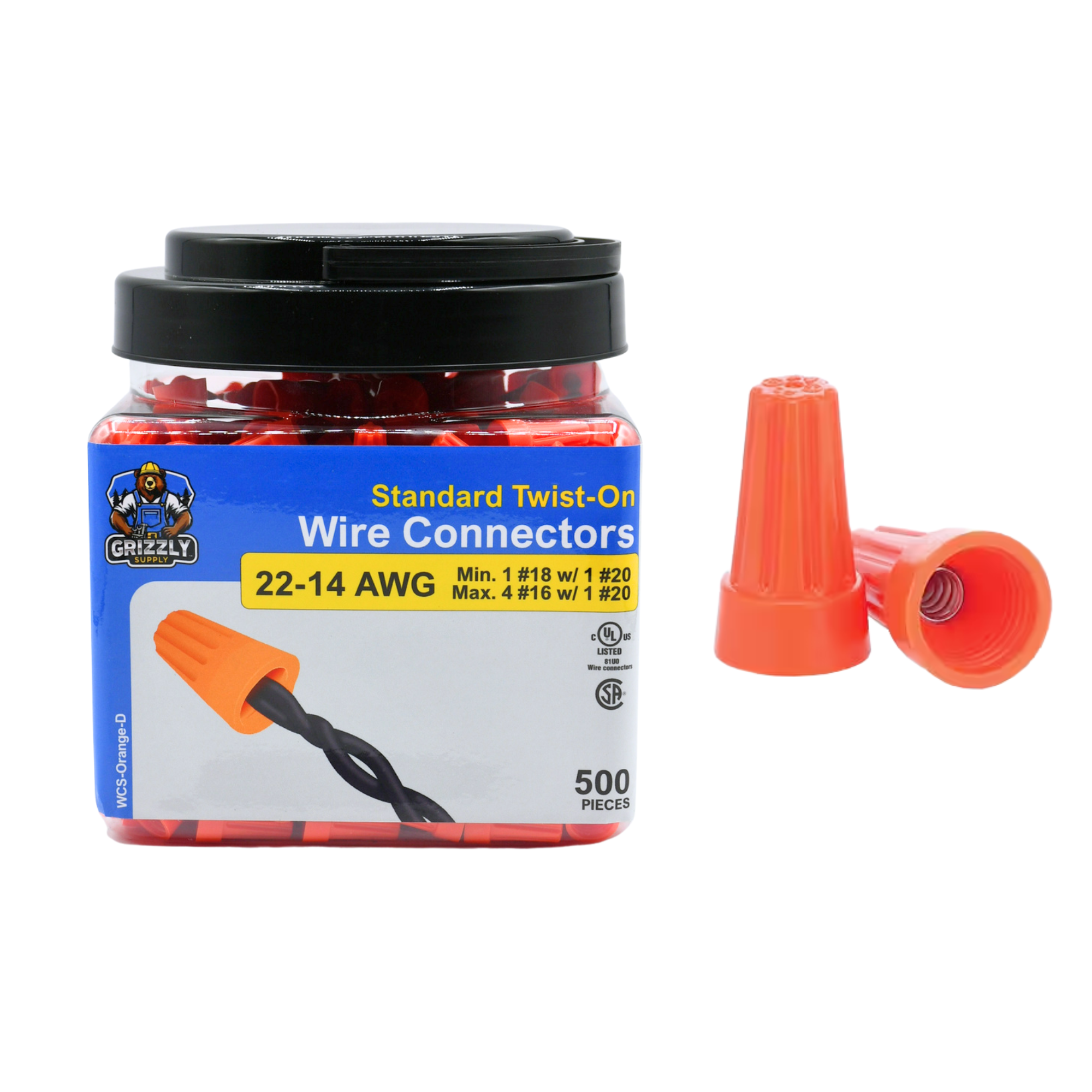

Standard Orange Screw-On Wire Connectors 22-14 AWG 500/Jar #WCS-Orange-D

Standard Orange Screw-On Wire Connectors 22-14 500/Jar

Qty. 500

Twist-On

22-14 AWG

Min. 1 #18 w/1 #20

Max. 4 #16 w/1 #20

UL Recognized (US): Yes

CSA: Yes

WARNING: Shut off power before working on a circuit. Only use approved materials and adhere to all electrical codes

Do not use in wet or damp conditions.

Installation Instructions:
1. Turn off power before installing or removing connectors.
2. Strip wires 5/16" (7.9 mm). For #16 and smaller stranded wires, strip 3/8" (9.5 mm).
3. Hold stripped wires together with ends even (lead stranded wires slightly). Pre-twisting is unnecessary.
4. Straighten frayed strands. Hold conductors parallel to each other.
5. Push wires firmly into connector. Screw on until two twists are visible in wires.
To be sold only with installation instructions

FOR USE WITH COPPER TO COPPER
Temperature Rating: 105°C (221°F) Max.
Voltage Rating: 300V Max

Shortened List of Wire Combinations:

1 or 2 #14
2 or 3 #16
2 to 4 #18
1 #14 w/1 #16
1 #16 w/1 or 2 #18
2 #16 w/1 #18
4 #16
5 #18
3 to 5 #20
5 #22
