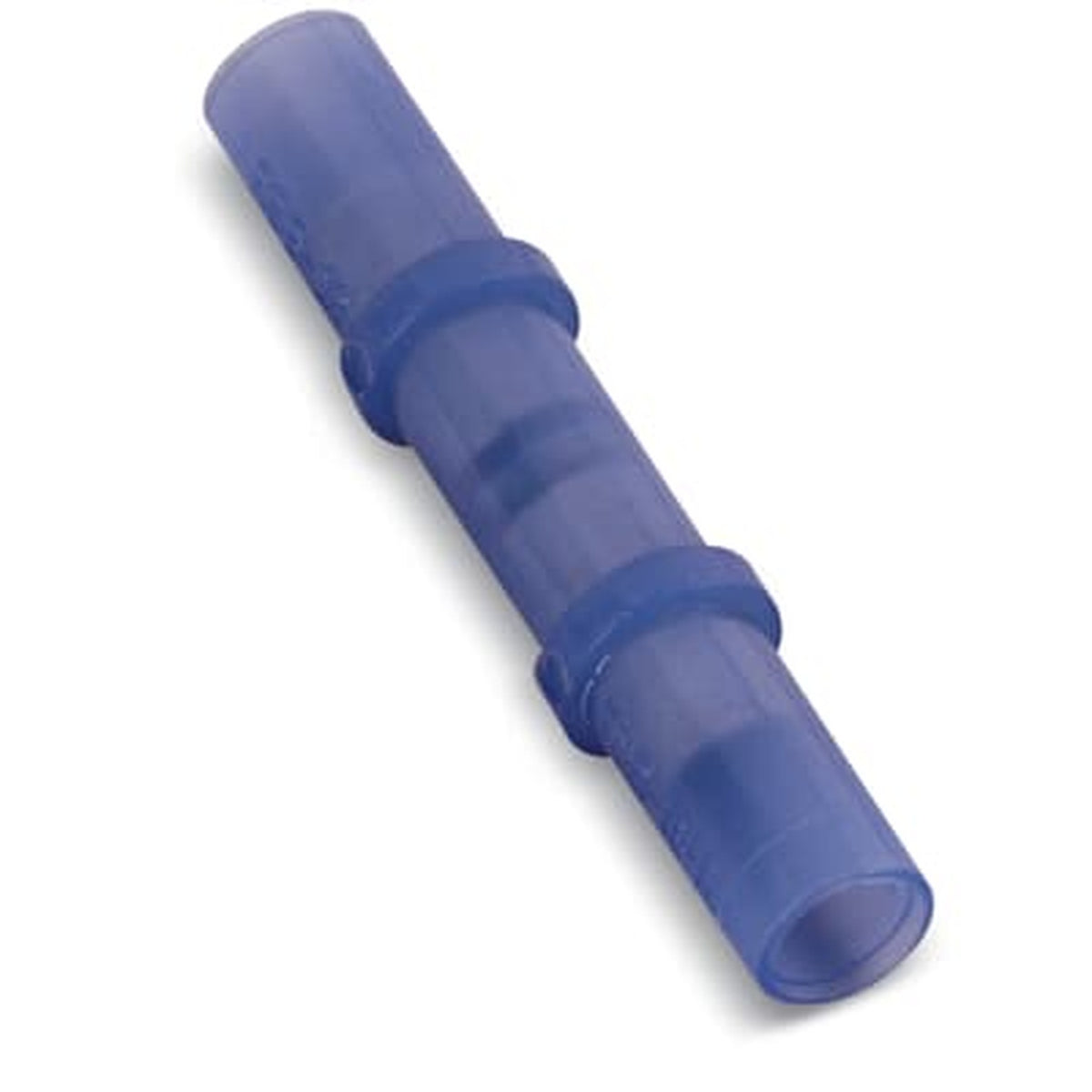

Sta-Kon Nylon Insulated Butt Connector, 16-14 AWG, Blue, 500 Pack

The RBB23 Sta-Kon Nylon Insulated Butt Connector, 16-14 AWG, Blue, 500 Pack is a Sta-Kon electrical connector built for dependable crimped terminations in professional wiring, panel, and equipment applications.

Nylon Insulated Aircraft Splice, Length 1.52 Inches, Width .28 Inches, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, 500 Pack.

Nylon insulated splices meet or exceed the requirements of MIL-T-7928. These splices are color-coded according to wire size.

Specifications

• Part Number: RBB23
• Connector Type: Butt Connector
• Wire Range: 16-14 AWG
• Material: Copper
• Finish: Electro -Tin Plated
• Insulation: Nylon Insulated
• Color: Blue
• Voltage Rating: 600 V
• Temperature Rating: 105 C
• Standard: UL E9809
• Country of Origin: United States

Performance Advantages

• Butt-splice design joins two conductors end-to-end in a crimped electrical connection
• Copper construction with Electro -Tin Plated finish supports reliable electrical performance
• Blue nylon insulated supports quick visual identification by wire range
• Listed to UL E9809 where applicable

Applications

• End-to-end conductor splices
• Harness repair and extension work
• Industrial control and equipment wiring
• Electrical maintenance and field service

Installation Notes

• Verify the conductor wire range before crimping
• Use a compatible crimping tool and die for the terminal style and wire size
• Insert the stripped conductor fully into the barrel before crimping
• Inspect the crimp for secure mechanical retention and proper conductor placement

Packaging

• Sold in packs of 500

Documents

• Sales Drawing
