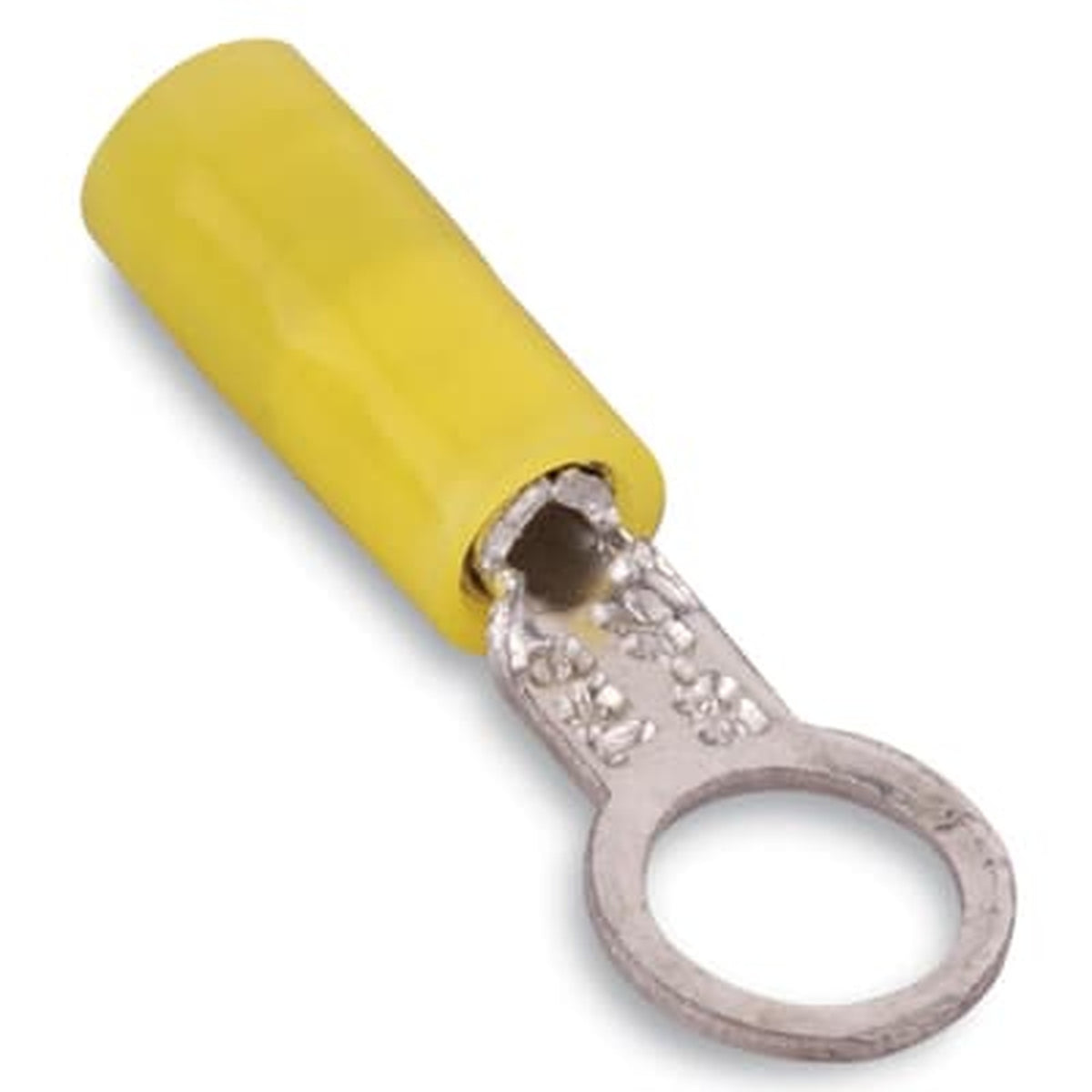

Sta-Kon Nylon Insulated Ring Terminal, 26-24 AWG, #6 Stud, Yellow, 1000 Pack

The RAX63 Sta-Kon Nylon Insulated Ring Terminal, 26-24 AWG, #6 Stud, Yellow, 1000 Pack is a Sta-Kon electrical connector built for dependable crimped terminations in professional wiring, panel, and equipment applications.

Nylon Insulated Ring Terminal, Length .84 Inches, Width .25 Inches, Maximum Insulation .125, Bolt Hole #6, Wire Range #26-#24 AWG, Color Yellow, Copper, Tin Plated.

Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.

Specifications

• Part Number: RAX63
• Connector Type: Ring Terminal
• Wire Range: 26-24 AWG
• Stud Size: #6 Stud
• Material: Copper
• Finish: Tinned
• Insulation: Nylon Insulated
• Color: Yellow
• Voltage Rating: 600 V
• Country of Origin: United States

Performance Advantages

• Closed-ring tongue helps maintain a secure connection on studs and terminal blocks
• Copper construction with Tinned finish supports reliable electrical performance
• Yellow nylon insulated supports quick visual identification by wire range

Applications

• Control panels and equipment wiring
• Terminal blocks, studs, and screw connections
• Electrical maintenance and repair work
• Wire harness and panel assembly

Installation Notes

• Verify the conductor wire range before crimping
• Use a compatible crimping tool and die for the terminal style and wire size
• Insert the stripped conductor fully into the barrel before crimping
• Inspect the crimp for secure mechanical retention and proper conductor placement

Packaging

• Sold in packs of 1000
• Reel Packaging: No

Documents

• Environmental Product Declaration
