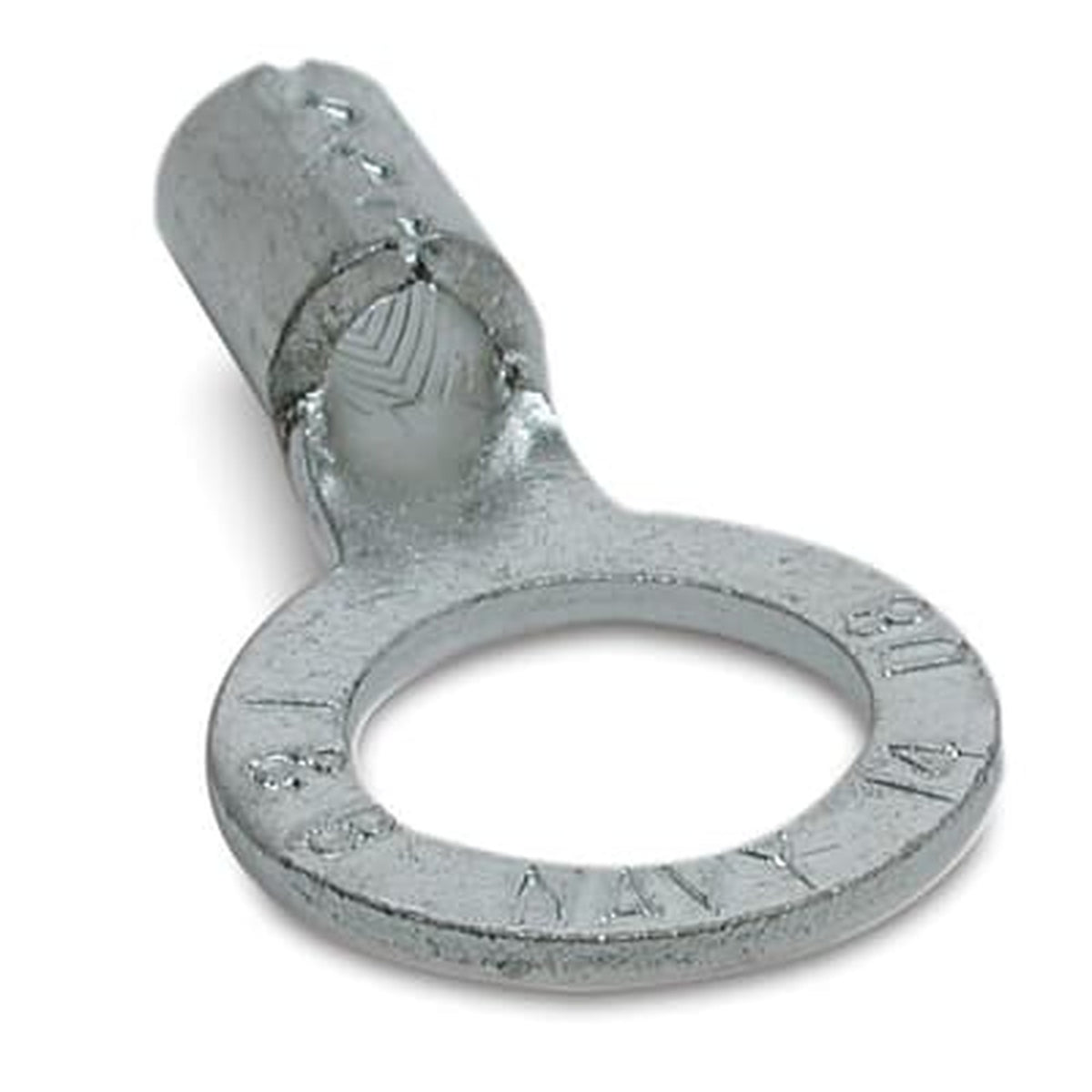

Sta-Kon Non-Insulated Ring Terminal, 6 AWG, 3/8 in Stud, Metallic, 20 Pack

The E6-38 Sta-Kon Non-Insulated Ring Terminal, 6 AWG, 3/8 in Stud, Metallic, 20 Pack is a Sta-Kon electrical connector built for dependable crimped terminations in professional wiring, panel, and equipment applications.

Non-Insulated Large Brazed Seam Ring Terminal, Length 1.32 Inches, Width .60 Inches, Bolt Hole 3/8 Inch, Wire Range #6 AWG, Copper, Tin Plated, 20 Pack.

These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.

Specifications

• Part Number: E6-38
• Connector Type: Ring Terminal
• Wire Range: 6 AWG
• Stud Size: 3/8 in Stud
• Material: Copper
• Finish: Tinned
• Insulation: Non-Insulated
• Color: Metallic
• Voltage Rating: 600 V
• Standard: UL E9809
• Country of Origin: United States

Performance Advantages

• Closed-ring tongue helps maintain a secure connection on studs and terminal blocks
• Copper construction with Tinned finish supports reliable electrical performance
• Listed to UL E9809 where applicable

Applications

• Control panels and equipment wiring
• Terminal blocks, studs, and screw connections
• Electrical maintenance and repair work
• Wire harness and panel assembly

Installation Notes

• Verify the conductor wire range before crimping
• Use a compatible crimping tool and die for the terminal style and wire size
• Insert the stripped conductor fully into the barrel before crimping
• Inspect the crimp for secure mechanical retention and proper conductor placement

Packaging

• Sold in packs of 20
• Reel Packaging: No

Documents

• Environmental Product Declaration
• Sales Drawing
