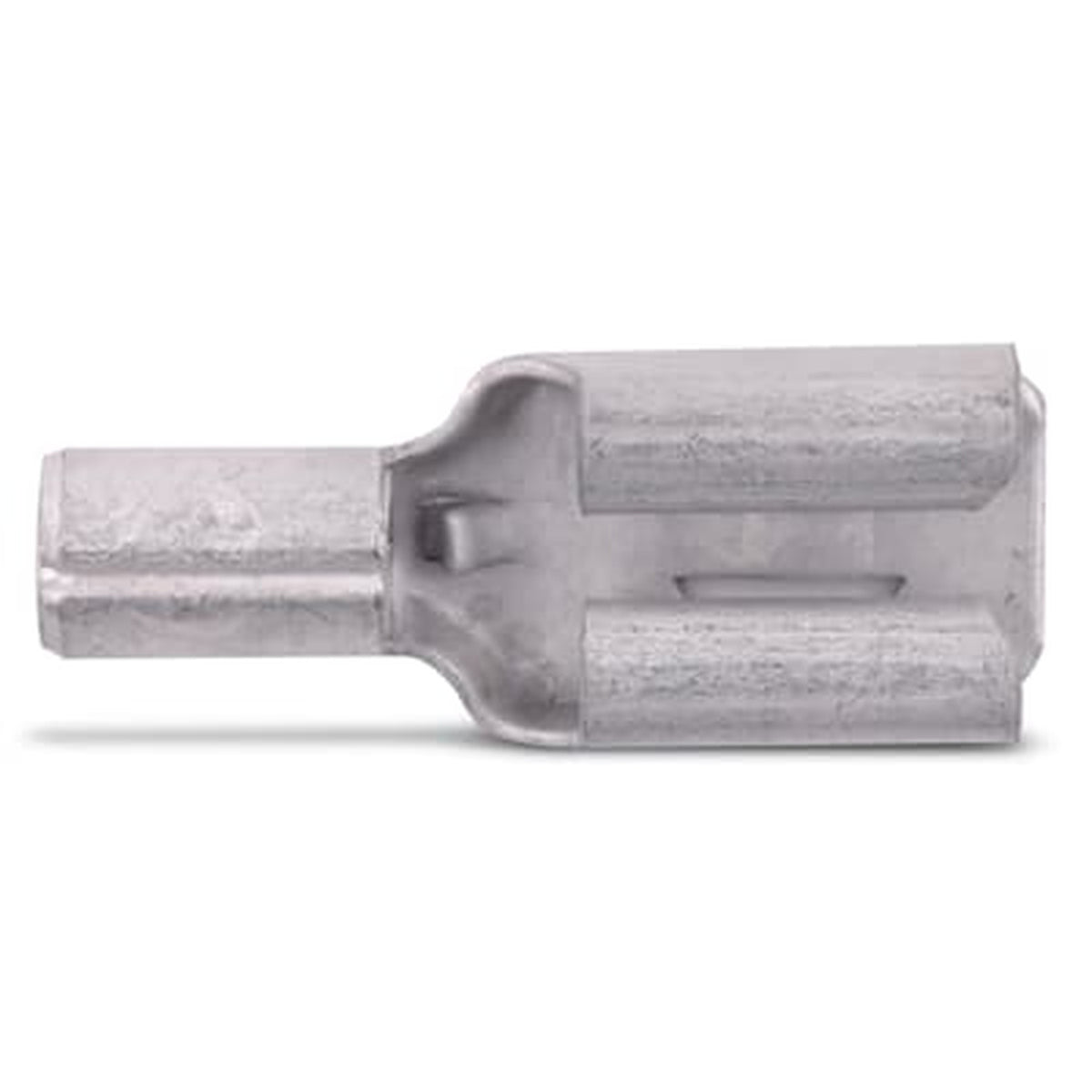

Sta-Kon Non-Insulated Disconnect Terminal, 16-14 AWG, 0.250 in Tab, Metallic, 1000 Pack

The B250 Sta-Kon Non-Insulated Disconnect Terminal, 16-14 AWG, 0.250 in Tab, Metallic, 1000 Pack is a Sta-Kon electrical connector built for dependable crimped terminations in professional wiring, panel, and equipment applications.

Non-Insulated Female Disconnect, Length .73 Inches, Width .31 Inches, Tab Size .250x.032, Wire Range #16-#14 AWG, Copper, Tin Plated, 1000 Pack.

Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.

Specifications

• Part Number: B250
• Connector Type: Disconnect Terminal
• Wire Range: 16-14 AWG
• Tab Size: 0.250 in Tab
• Material: Brass
• Finish: Tin Plated
• Insulation: Non-Insulated
• Color: Metallic
• Standard: UL E66716
• Country of Origin: United States

Performance Advantages

• Disconnect format supports serviceable electrical connections in panels, equipment, and harnesses
• Brass construction with Tin Plated finish supports reliable electrical performance
• Listed to UL E66716 where applicable

Applications

• Serviceable equipment connections
• Control panels and appliance wiring
• Wire harness assemblies
• Maintenance points that require disconnect access

Installation Notes

• Verify the conductor wire range before crimping
• Use a compatible crimping tool and die for the terminal style and wire size
• Insert the stripped conductor fully into the barrel before crimping
• Inspect the crimp for secure mechanical retention and proper conductor placement

Packaging

• Sold in packs of 1000

Documents

• Environmental Product Declaration
• Sales Drawing
