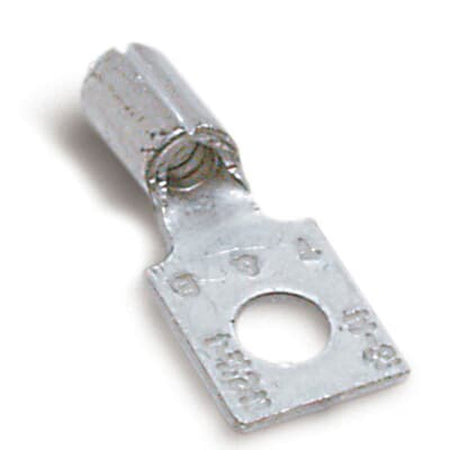

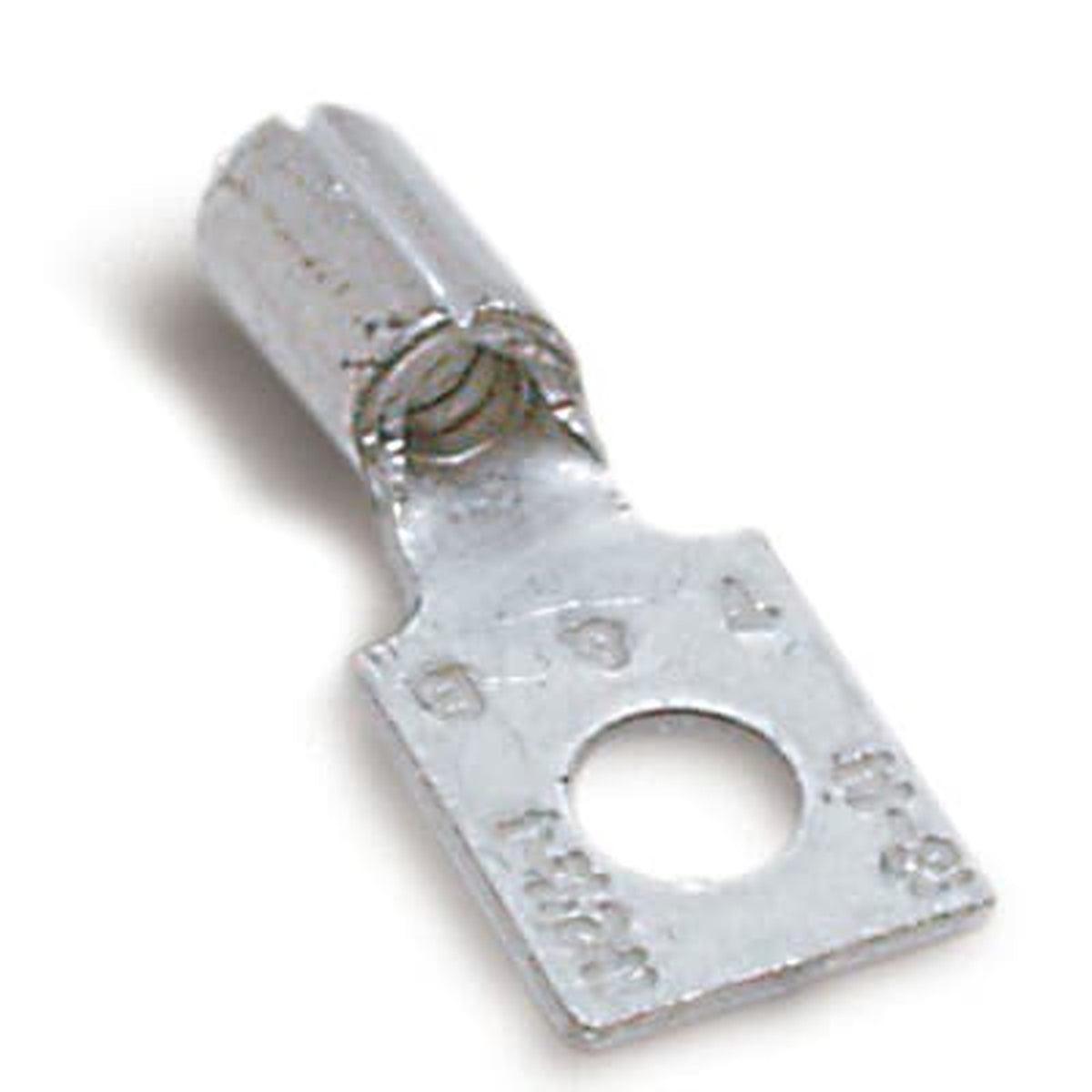

Sta-Kon Non-Insulated Ring Terminal, 22-18 AWG, #6 Stud, Metallic, 1000 Pack

The A484 Sta-Kon Non-Insulated Ring Terminal, 22-18 AWG, #6 Stud, Metallic, 1000 Pack is a Sta-Kon electrical connector built for dependable crimped terminations in professional wiring, panel, and equipment applications.

Non-Insualted Rectangular Ring Terminal, Length .87 Inches, Width .237 Inches, Bolt Hole #6, Wire Range #22-#18 AWG, Copper, Tin Plated.

Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.

Specifications

• Part Number: A484
• Connector Type: Ring Terminal
• Wire Range: 22-18 AWG
• Stud Size: #6 Stud
• Material: Copper
• Finish: Tinned
• Insulation: Non-Insulated
• Color: Metallic
• Voltage Rating: 600 V
• Standard: UL E9809
• Country of Origin: United States

Performance Advantages

• Closed-ring tongue helps maintain a secure connection on studs and terminal blocks
• Copper construction with Tinned finish supports reliable electrical performance
• Listed to UL E9809 where applicable

Applications

• Control panels and equipment wiring
• Terminal blocks, studs, and screw connections
• Electrical maintenance and repair work
• Wire harness and panel assembly

Installation Notes

• Verify the conductor wire range before crimping
• Use a compatible crimping tool and die for the terminal style and wire size
• Insert the stripped conductor fully into the barrel before crimping
• Inspect the crimp for secure mechanical retention and proper conductor placement

Packaging

• Sold in packs of 1000
• Reel Packaging: No

Documents

• Sales Drawing
