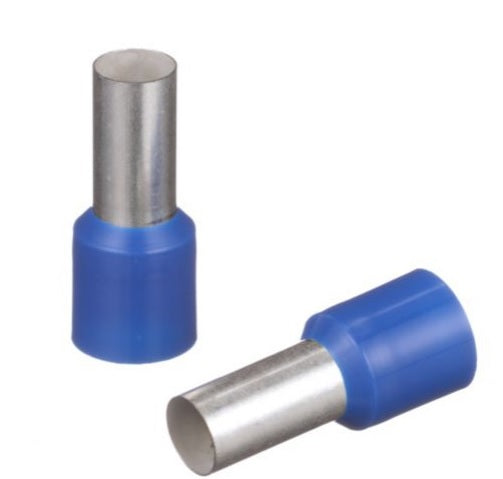

Panduit Polypropylene insulated single wire ferrules, Blue DIN end sleeve, AWG #6, .91 pin length 100/bag
The single wire DIN end sleeve insulated ferrule in blue has a funnel
Regular price
$0.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch
The single wire DIN end sleeve insulated ferrule in blue has a funnel entry for faster insertion and lower installation cost. It is intended for American Wire Gauge (AWG) #6 (16.0 mm²) wire ferrules and supports a maximum wire insulated diameter of 0.35 (8.8 mm). The insulated ferrule is 0.91 (23.0 mm) long and has a wire strip length of 0.625 (15.9 mm). It comes in standard packages of 100.
Ferrule Type Single Wire Standard
Cover Material Polypropylene
Copper Conductor Size (AWG) #6
Maximum Copper Conductor Size (AWG) #6
Maximum Metric Conductor Size (mm²) 16
Minimum Copper Conductor Size (AWG) #6
UL Temperature Rating (°C) 105
