Home » Pan-Term® DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000

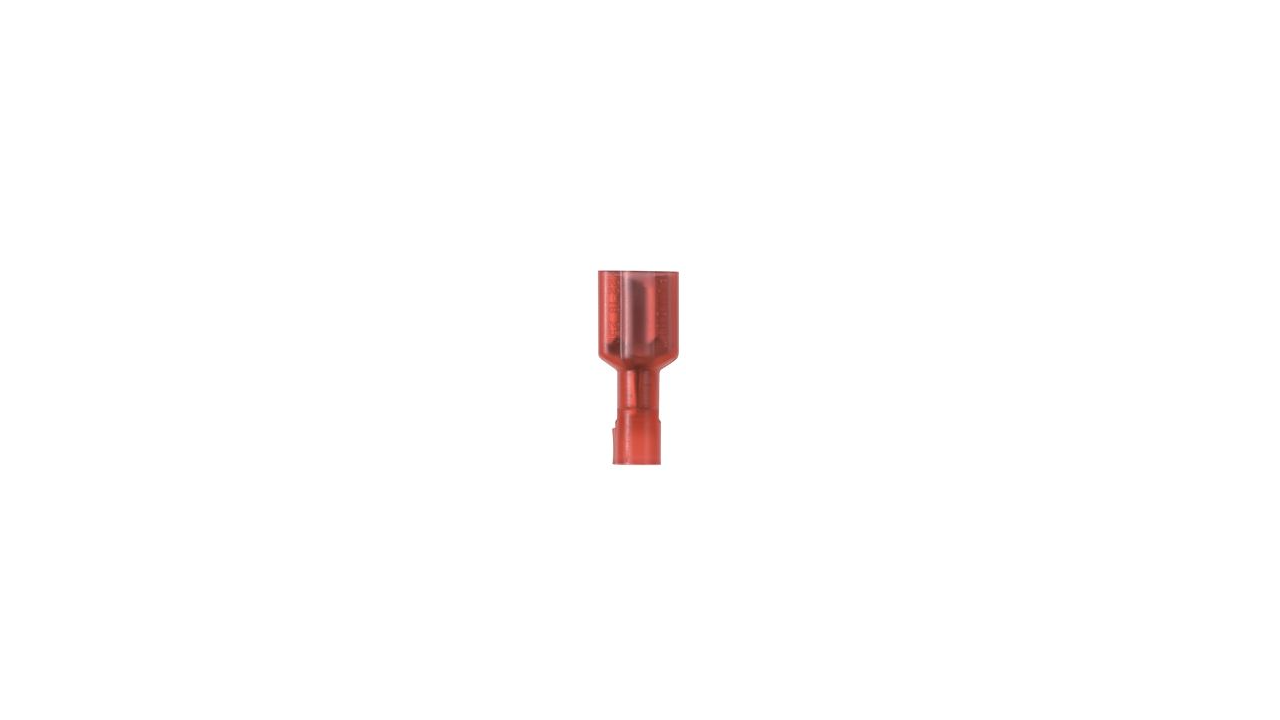

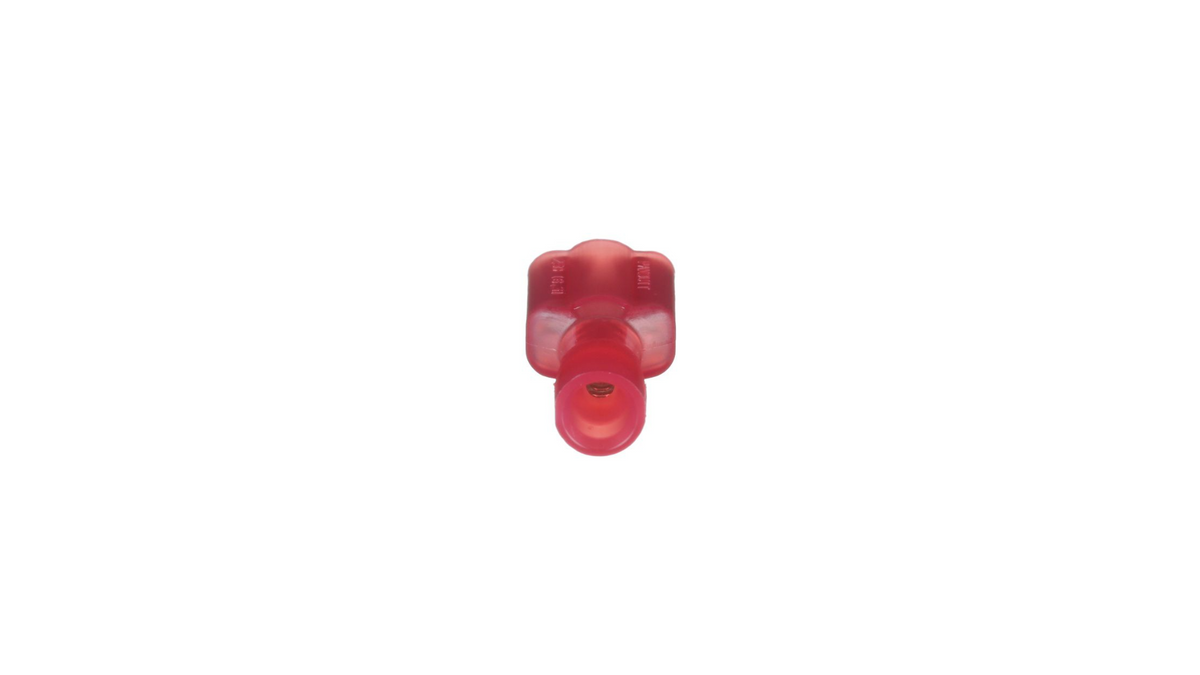

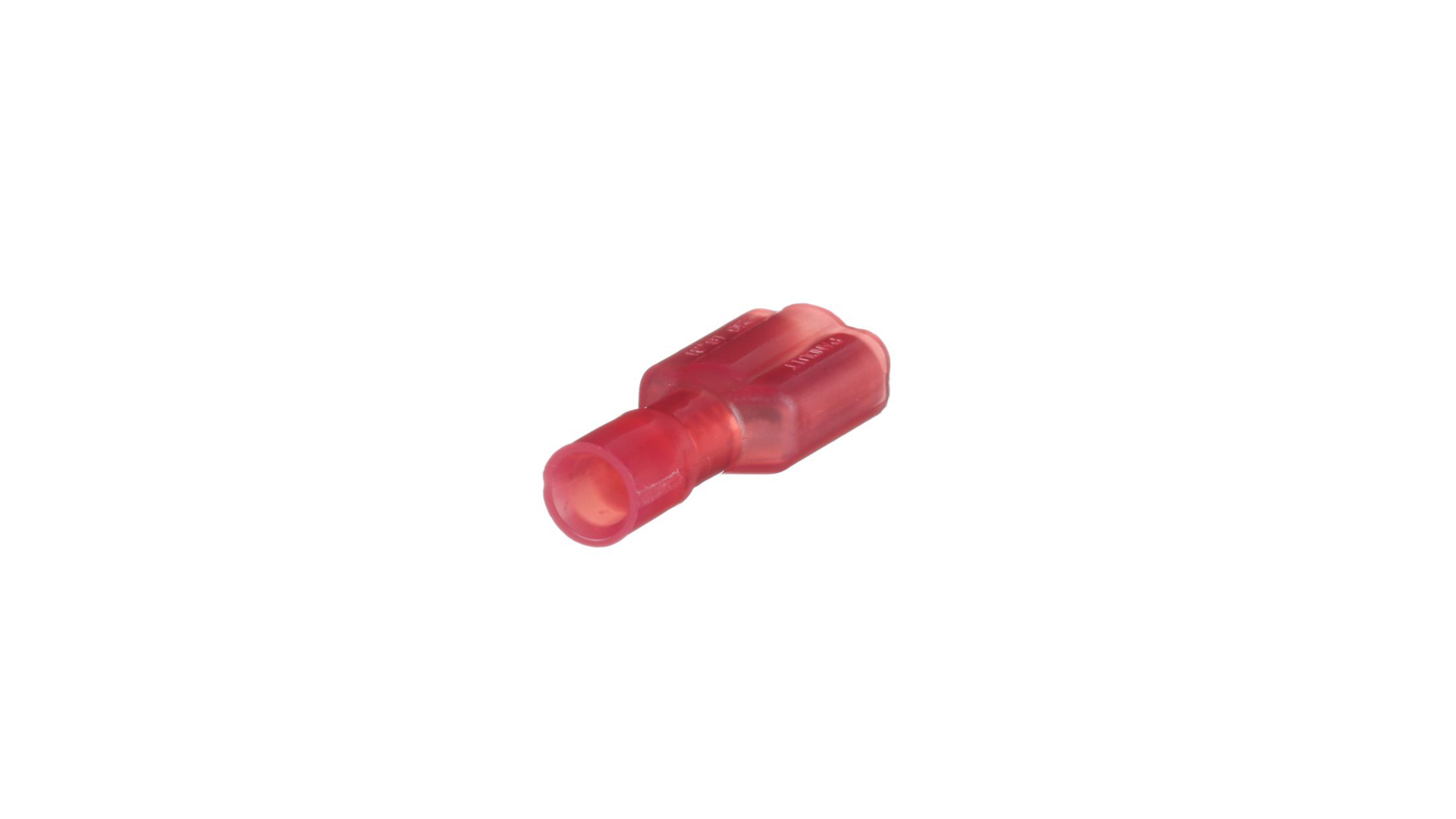

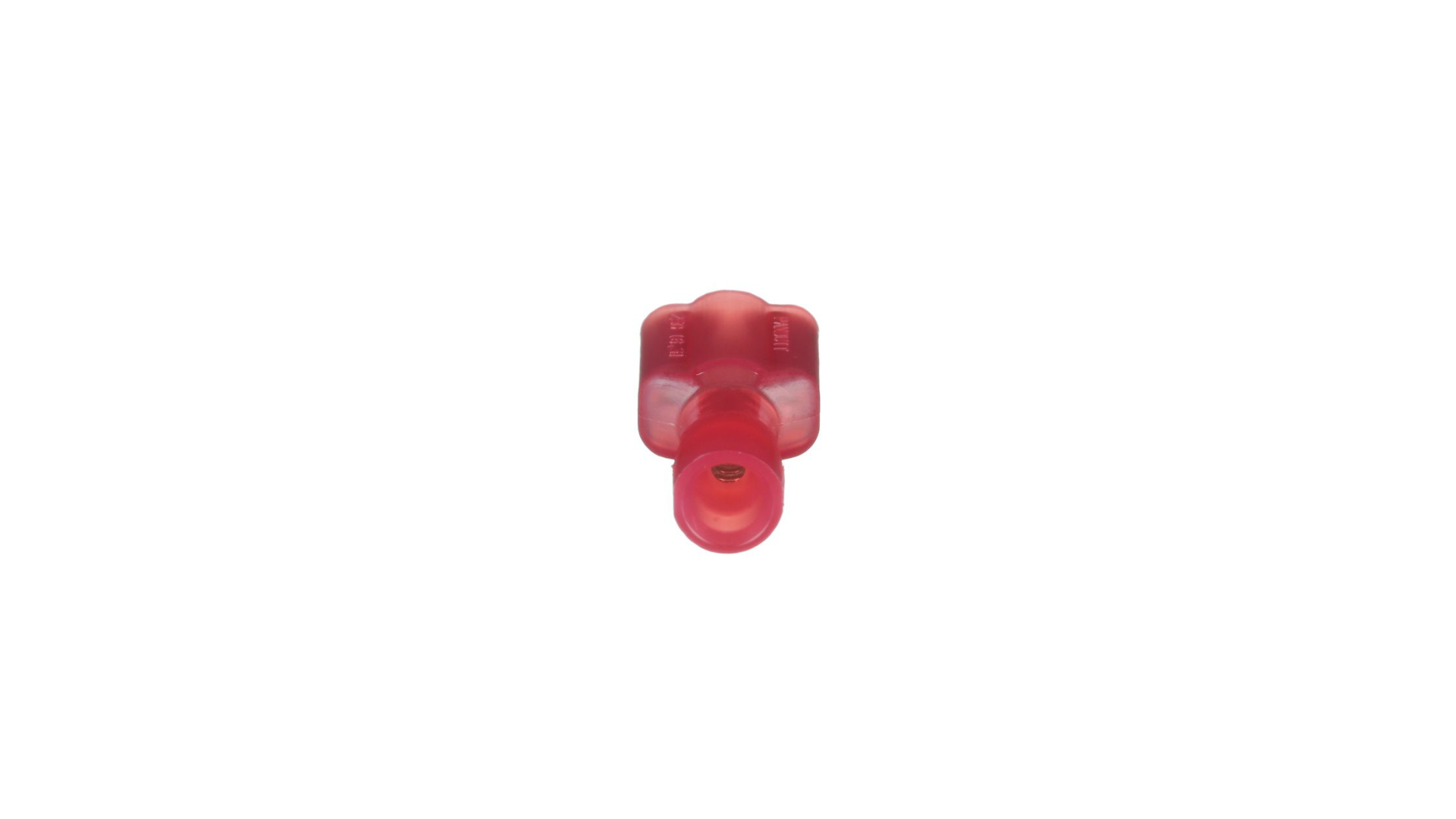

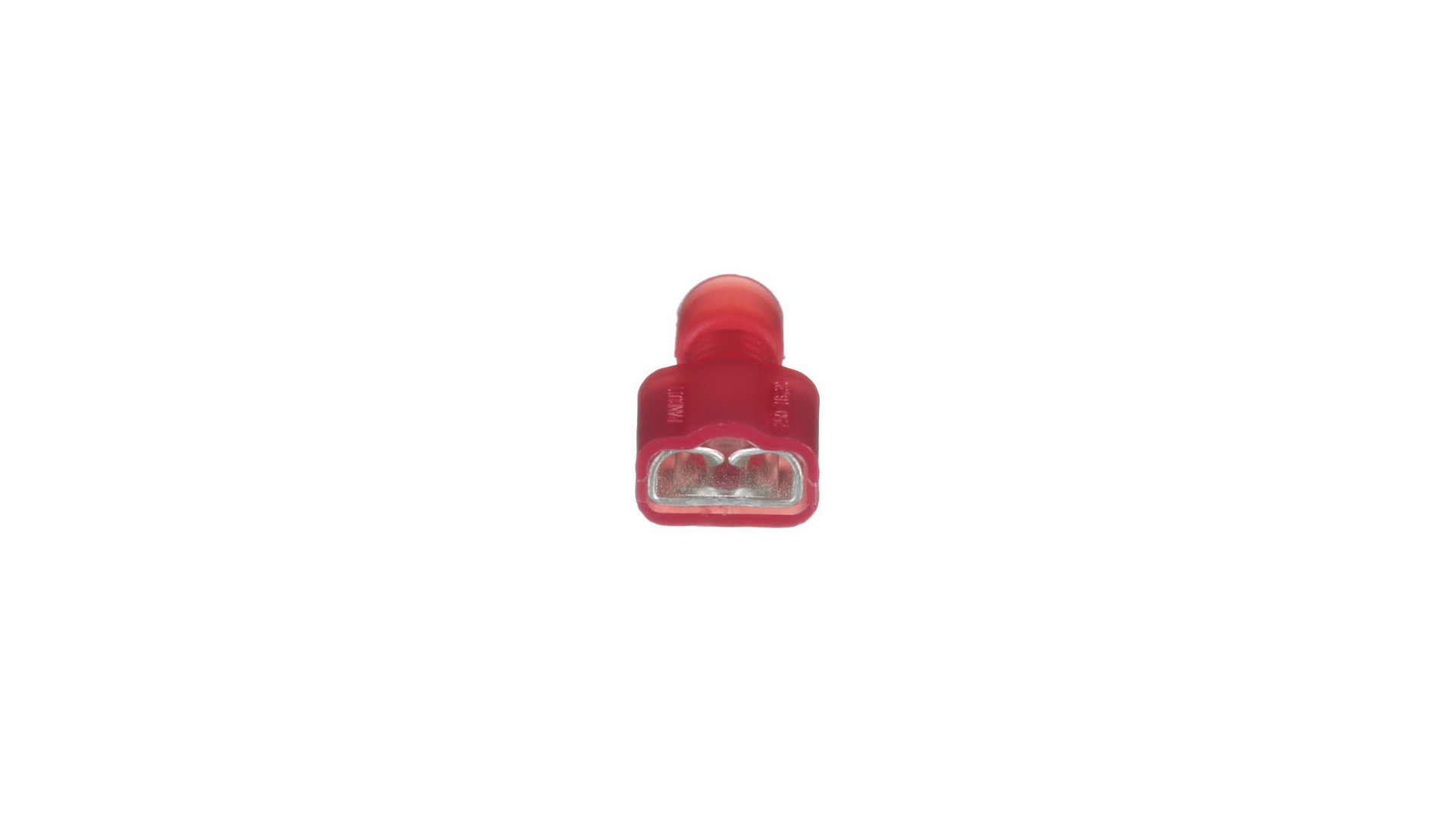

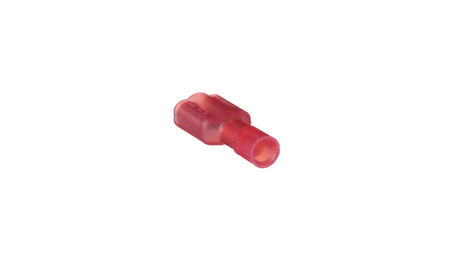

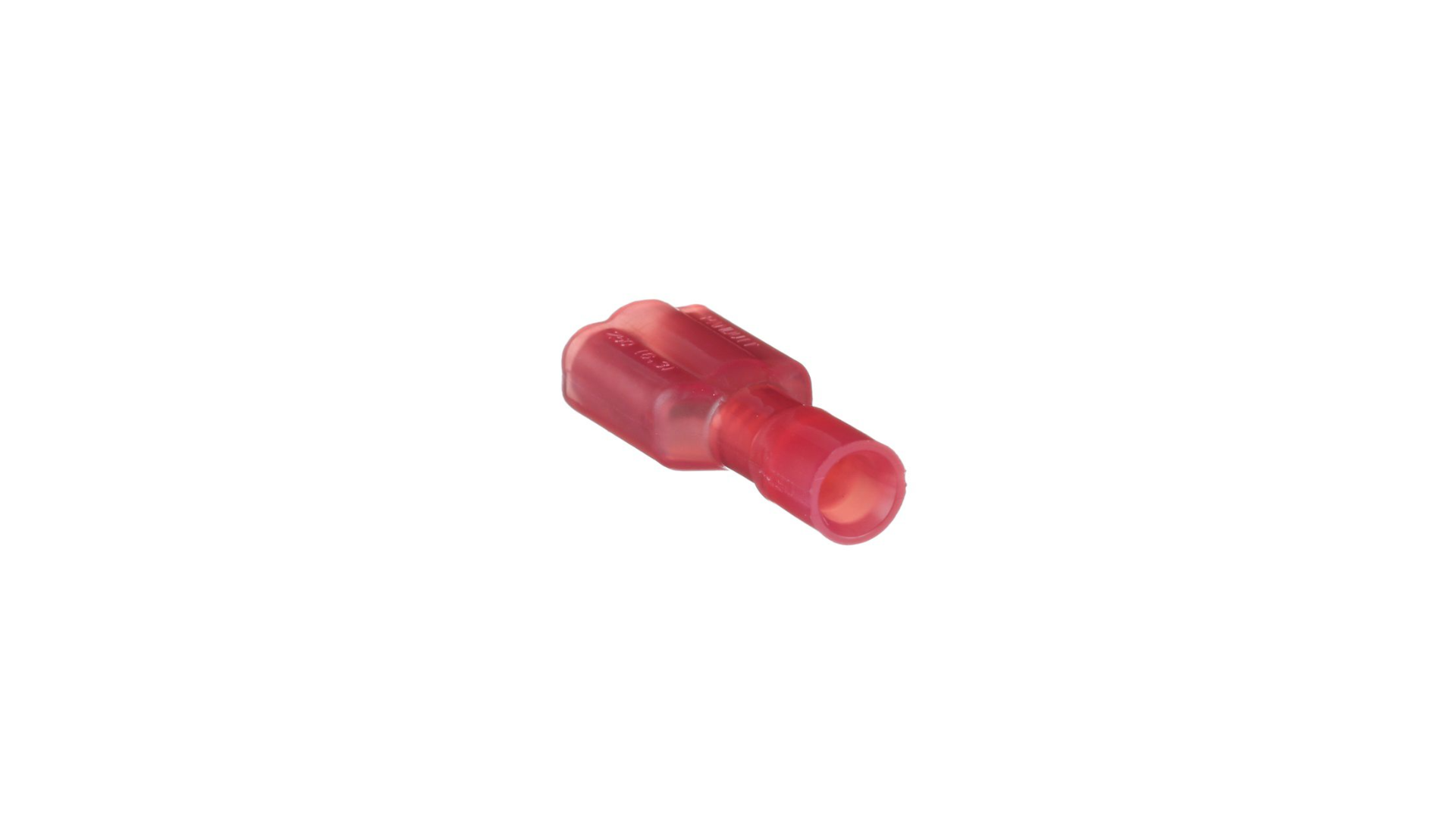

Pan-Term® DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000
Pan-Term® DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000
Pan-Term® DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000
Pan-Term® DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000
Pan-Term® DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000
Pan-Term® DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000
Pan-Term® DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000
Pan-Term® DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000
Pan-Term® DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000
Pan-Term® DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000
Panduit

Pan-Term® DNF18-250FIB-M Disconnect, Red, 18-22 AWG, 0.250 x 0.032" Tab, PK1000

SKU: DNF18-250FIB-M
(0)
$349.84
In stock

Got questions?

Feel free to get in touch

Female Disconnect; Type Funnel Entry; Tab Size 0.25 Inch x 0.032 Inch; Minimum Conductor Size 22 AWG; Maximum Conductor Size 18 AWG; Color Red; Insulation Type Nylon Fully Insulated; Temperature Rating 221 Deg F; Standard Package 1000; Approval UL 310, CSA C22.2; RoHS Compliant; Barrel Type Butted Seam; Voltage Rating 600 Volt; Overall Dimension 0.84 Inch Length x 0.35 Inch Width; Insulation Diameter 0.136 Inch; Material Tin Plated Brass; Wire Strip Length 9/32 Inch; Flammability Rating UL 94V-2/HB

Did you know? We ship 98.1% of our orders the same day they are received. Order by 2PM EST for same-day shipping!

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
