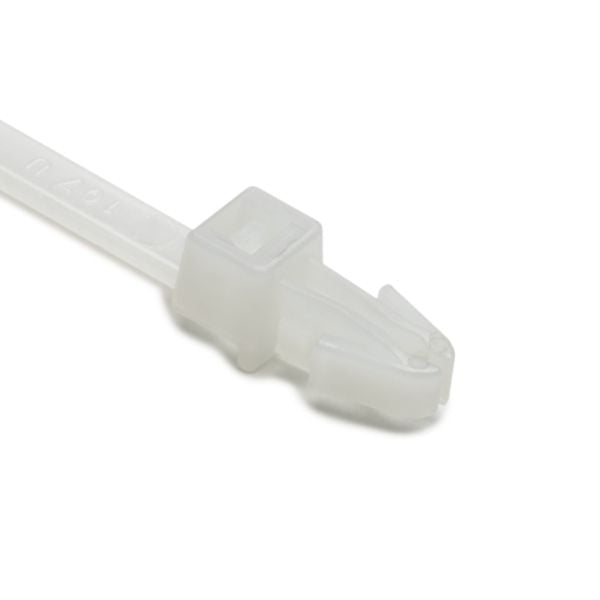

HellermannTyton T50RSF9C2 Arrowhead Push-Mount Cable Tie, 8.3"L, 50lb, 0.04"–0.14" Panel Thickness, PA66, Natural, 100/pkg

Specifications

• Length: 8.3"
• Tensile Strength: 50 lb
• Max Panel Thickness: 0.04"
• Material: Nylon 6/6
• Color: Natural
• Temperature Rating: -40°F to 185°F (-40°C to 85°C)
• Flammability Rating: UL 94 V-2
• Standards & Compliance: UL Listed, RoHS Compliant
• Part Number: T50RSF9C2

Performance Advantages

• UL Listed/Recognized for recognized safety compliance

Applications

• Bundling and organizing wires, cables, and cords
• Securing wire harnesses in automotive, marine, and industrial equipment
• Cable management in panels, enclosures, and equipment racks
• General-purpose fastening in indoor or outdoor installations

Installation Notes

• Drill or verify a panel hole of the diameter specified for the mount.
• Wrap the tie around the bundle and thread the tail through the head.
• Press the push-mount head firmly into the panel hole until the barbs seat.
• Confirm the mount is fully engaged before tensioning the tie.
• Tighten the tail until snug, then trim flush with the head.
• Do not exceed the stated tensile strength or temperature rating.

Packaging

• Supplied 100 per package.
