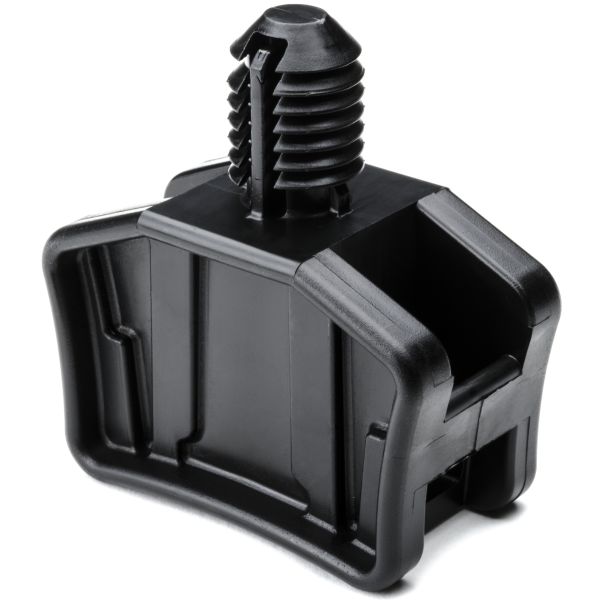

HellermannTyton S3STM500HIRHSC2 Fir Tree Saddle Mount, 0.5" Hole, 0.08-0.52" Thick, Black, 100/pkg
HellermannTyton S3STM500HIRHSC2 Fir Tree Saddle Mount, Hole Diameter 0
Regular price
$619.43
Couldn't load pickup availability
Got questions?
Feel free to get in touch
HellermannTyton S3STM500HIRHSC2 Fir Tree Saddle Mount, Hole Diameter 0.5", Panel Thickness 0.08 - 0.52", PA66HIRHSUV, Black, 100/pkg
Length: 2"
Width: 0.9"
Bundle Diameter Max: 5"
Height: 1.40"
Panel Thickness Min: 0.075"
Panel Thickness Max: 0.512"
Mounting Hole Diameter D: 0.5"
Color: Black
Qty/Bag: 100
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut: PA66HIRHSUV
Flammability: UL 94 HB
Operating Temperature (Metric): -40°F to +230°F (-40°C to +110°C)
Minimum Extraction Force (Imperial): 200.0
Minimum Extraction Force (Metric): 890
Reach Complaint(Article 33): Yes
ROHS Complaint: Yes
Features & Benefits
•Heavy duty fir tree mount requires low insertion force and high extraction force.
•Impact modified, heat stabilized, UV material makes it ideal for heavy-duty solutions.
