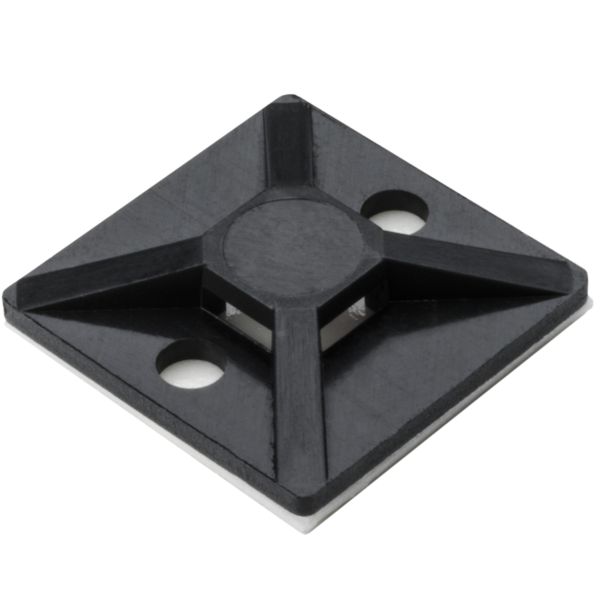

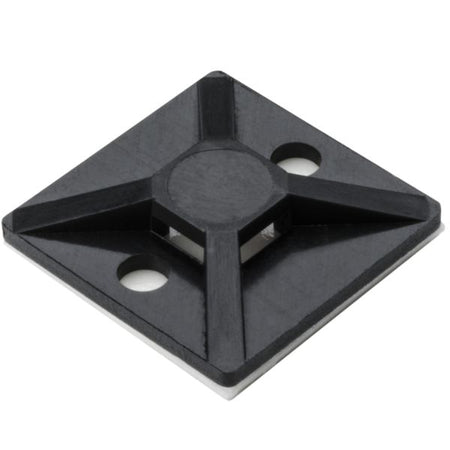

HellermannTyton MB3A0A2H4 Adhesive Cable Tie Mount, .75" x .75", .14" Max Tie Width, .12" Hole Dia, PA66/Acrylate, Black, 500/pkg

Specifications

• Dimensions: 0.75" x 0.75"
• Mounting Hole Diameter: 0.12"
• Max Tie Width: 0.14"
• Material: Nylon 6/6
• Color: Black
• Temperature Rating: -40°F to 185°F (-40°C to 85°C)
• Flammability Rating: UL 94 V-2
• Standards & Compliance: RoHS Compliant
• Part Number: MB3A0A2H4

Performance Advantages

• Provides a secure anchor point for tie-down of cable bundles

Applications

• Providing a fixed anchor point for cable ties on panels and walls
• Routing and retaining wire bundles along equipment chassis
• Cable management where drilling a through-hole is impractical
• Organizing wiring in enclosures, cabinets, and control panels

Installation Notes

• Clean and dry the mounting surface before installation.
• For adhesive types, remove the liner and press firmly for several seconds; allow the adhesive to cure fully before loading.
• For screw-mount types, fasten through the mounting hole with the specified screw size.
• For push-mount types, press the mount into a correctly sized panel hole until it seats.
• Thread the cable tie through the mount and tighten around the bundle.
• Verify the tie width does not exceed the mount's maximum tie width.

Packaging

• Supplied 500 per package.
