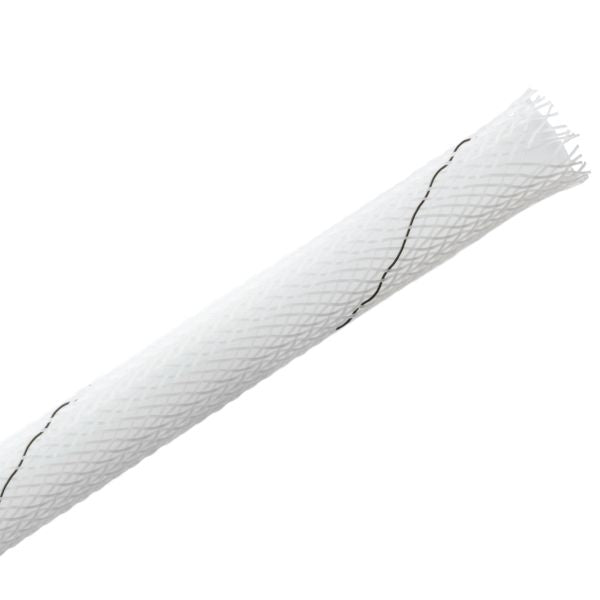

HellermannTyton 170-03101 Plenum Rated Expandable Braided Sleeving (Halar), .25" Dia, White, 200 ft/reel
HellermannTyton 170-03101 Plenum Rated Expandable Braided Sleeving
Regular price
$260.93
Couldn't load pickup availability
Got questions?
Feel free to get in touch
HellermannTyton 170-03101 Plenum Rated Expandable Braided Sleeving (Halar), .25" Dia, White, 200 ft/reel
Length: 200ft
Bundle Diameter Min: 0.125
Bundle Diameter Max: 0.437
Diameter: 0.25"
Nominal Diameter: 1/4
Color: White
Qty/Bag: 1
Material: Ethylene Chlorotrifluoroethylene (E/CTFE)
Material Shortcut: PA66E/CTFE
Flammability: FAR 25 UL VW-1
Halogen free: No
Operating Temperature (Metric): -103°F to +302°F (-75°C to +150°C)
Reach Complaint(Article 33): Yes
ROHS Complaint: Yes
Certification/Specification WEB: UL | UL 1441 UL | ANSI/UL 746B UL | UL 746A UL 2024
UL Recognized (US): Yes
UL Recognized (US and Canada): Yes
Features & Benefits
• Meets UL 2024 and NFPA 262 specifications meets requirements for use in plenum applications.
• Technically advanced monofilament material is rated as low smoke, flame resistant and can withstand exposure to Cobal 60 radiation.
• Exceeds requirements of FMVSS 302 as well as aviation industry requirements of FAR25.
