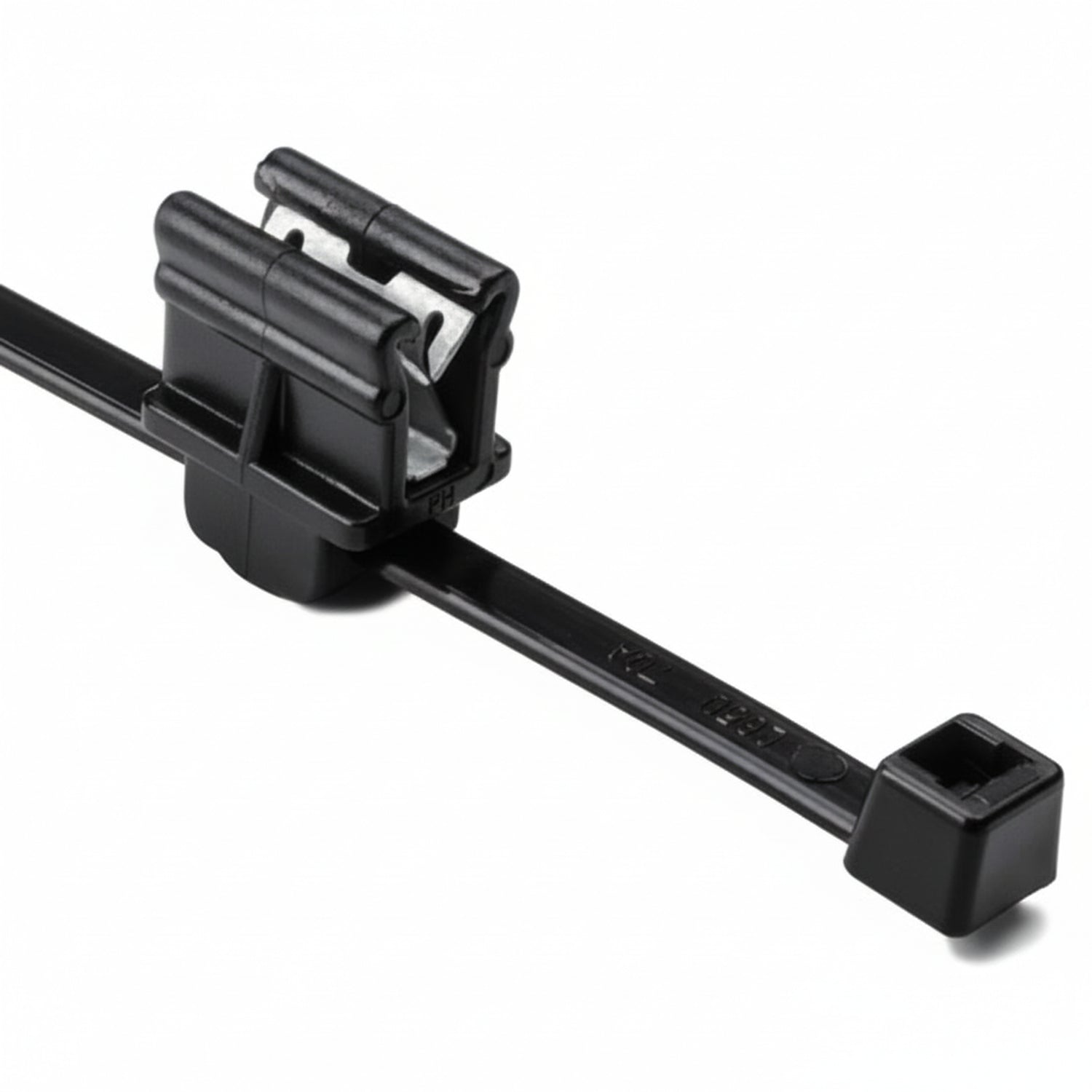

HellermannTyton 156-00551 Cable Tie & Edge Clip, 8.0" Long, EC9, 1–3 mm Panel, 50lb, PA66HS/PA66HIRHSUV, Black, 500/pkg

Specifications

• Tensile Strength: 50 lb
• Material: Nylon 6/6 (Heat & UV Stabilized, High Impact)
• Color: Black
• Temperature Rating: -40°F to 230°F (-40°C to 110°C)
• Flammability Rating: UL 94 HB
• Standards & Compliance: RoHS Compliant
• Part Number: 156-00551

Performance Advantages

• Heat-stabilized grade for elevated-temperature service

Applications

• Providing a fixed anchor point for cable ties on panels and walls
• Routing and retaining wire bundles along equipment chassis
• Cable management where drilling a through-hole is impractical
• Organizing wiring in enclosures, cabinets, and control panels

Installation Notes

• Clean and dry the mounting surface before installation.
• For adhesive types, remove the liner and press firmly for several seconds; allow the adhesive to cure fully before loading.
• For screw-mount types, fasten through the mounting hole with the specified screw size.
• For push-mount types, press the mount into a correctly sized panel hole until it seats.
• Thread the cable tie through the mount and tighten around the bundle.
• Verify the tie width does not exceed the mount's maximum tie width.

Packaging

• Supplied 500 per package.
