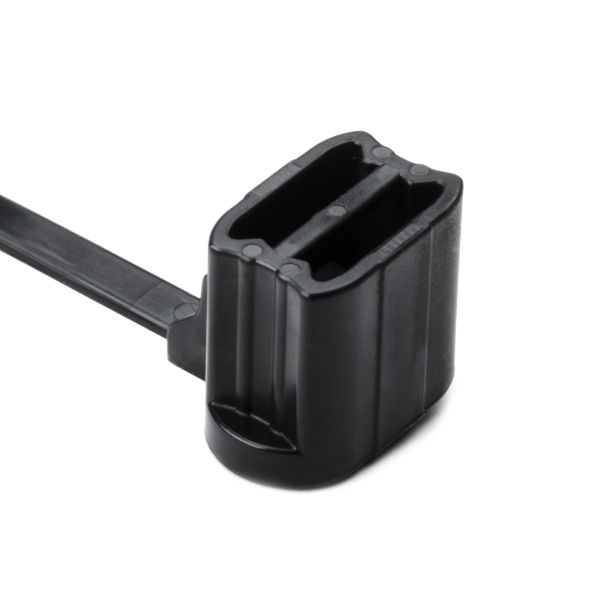

HellermannTyton 155-05400 1-Piece Cable Tie/Oval Stud Mount, Designed for 5.0 mm stud, 6.0" Long, PA66HS, Black, 500/pkg

Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS)
• Color: Black
• Length: 6"
• Width: 0.19"
• Tensile Strength: 50 lbs
• Stud Diameter: 0.2"
• Bundle Diameter Min: 0.04"
• Bundle Diameter Max: 1.4"
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Flammability: UL 94 V2
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Bag Quantity: 500

Performance Advantages

• PA66 heat-stabilized nylon provides reliable performance in elevated-temperature environments.
• Stud-mount design slides over existing bolts or studs for fast, tool-free installation.
• Rated UL 94 V2 for use in flame-sensitive installations.
• RoHS-compliant construction ensures regulatory conformance.
• Oval mount design pushes on easy by hand without the need for tools.
• Design provides low insertion and high extraction force.

Applications

• Securing cable bundles to existing stud/bolt points on machinery and equipment
• Automotive and heavy equipment wire harness attachment
• Industrial control panel and enclosure cable routing
• HVAC and mechanical equipment wiring management

Installation Notes

• Slide the mount over the existing stud or bolt (0.2") and secure with the appropriate nut.
• Thread the cable tie through the mount and tension to the desired tightness.
• Verify the mount and cable tie are fully engaged after installation.
• Do not exceed the stated operating temperature range (-40°F to +221°F (-40°C to +105°C)).

Packaging

• Supplied in packages of 500.
