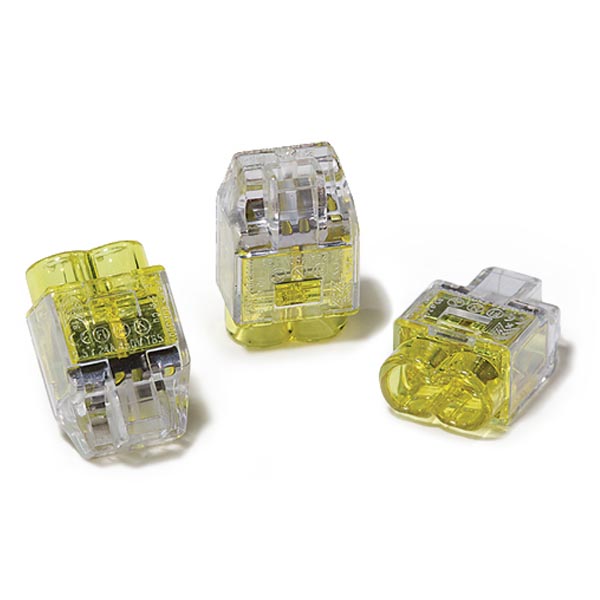

HellermannTyton 148-90036 HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 2-Port, (PC), Yellow, 150/pkg

HellermannTyton 148-90036 HelaCon Plus Mini, Push-In Style Wire Connector, Double Spring, 2-Port, (PC), Yellow, 150/pkg Length: 0.65" Width: 0.42" Height: 0.3" Depth: 0.65" Color: Yellow Qty/Bag: 150 Material: Polycarbonate (PC) Material Shortcut: PC Flammability: UL 94 V0 Halogen free: Yes Operating Temperature (Metric): -22°F to +185°F (-30°C to +85°C) Reach Complaint(Article 33): Yes ROHS Complaint: Yes Certification/Specification WEB: UL | ANSI/UL 486-B Intertek Semko | EN 60998-2-2:2004 NEMKO AS | EN 60998-2-2:2004 ENEC CE | 2006/65/EC SGS Fimko Ltd | EN 60998-2-2:201 UL | ANSI/UL 486-C cULus SGS Fimko Ltd | EN 60998-2-2:2004 UL | ANSI/UL 486-A UL Listed (US and Canada): Yes UL Listed (US): Yes Features & Benefits •Spring technology for safe, secure and reliable connections. •Smaller footprint fits in tight spaces. •Low insertion force makes installation of solid or stranded copper wire fast and easy. •Color coded for easy identification of size. •Each port accepts multiple wire diameters for flexible applications. •Accepts 12–22 AWG solid wire and 14–22 AWG stranded wire.
