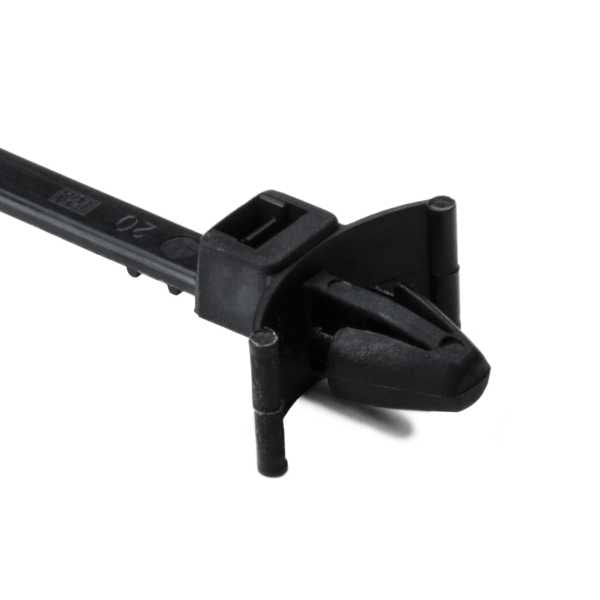

HellermannTyton 126-00001 Arrowhead Push Mount Tie, 6"L, 50lb, 0.03"–0.10" Panel Thickness, PA66HS, Black, 500/bag

Specifications

• Length: 6"
• Tensile Strength: 50 lb
• Max Panel Thickness: 0.03"
• Material: Nylon 6/6 (Heat Stabilized)
• Color: Black
• Temperature Rating: -40°F to 221°F (-40°C to 105°C)
• Flammability Rating: UL 94 V-2
• Standards & Compliance: RoHS Compliant
• Part Number: 126-00001

Performance Advantages

• Heat-stabilized grade for elevated-temperature service

Applications

• Bundling and organizing wires, cables, and cords
• Securing wire harnesses in automotive, marine, and industrial equipment
• Cable management in panels, enclosures, and equipment racks
• General-purpose fastening in indoor or outdoor installations

Installation Notes

• Drill or verify a panel hole of the diameter specified for the mount.
• Wrap the tie around the bundle and thread the tail through the head.
• Press the push-mount head firmly into the panel hole until the barbs seat.
• Confirm the mount is fully engaged before tensioning the tie.
• Tighten the tail until snug, then trim flush with the head.
• Do not exceed the stated tensile strength or temperature rating.

Packaging

• Supplied 500 per bag.
